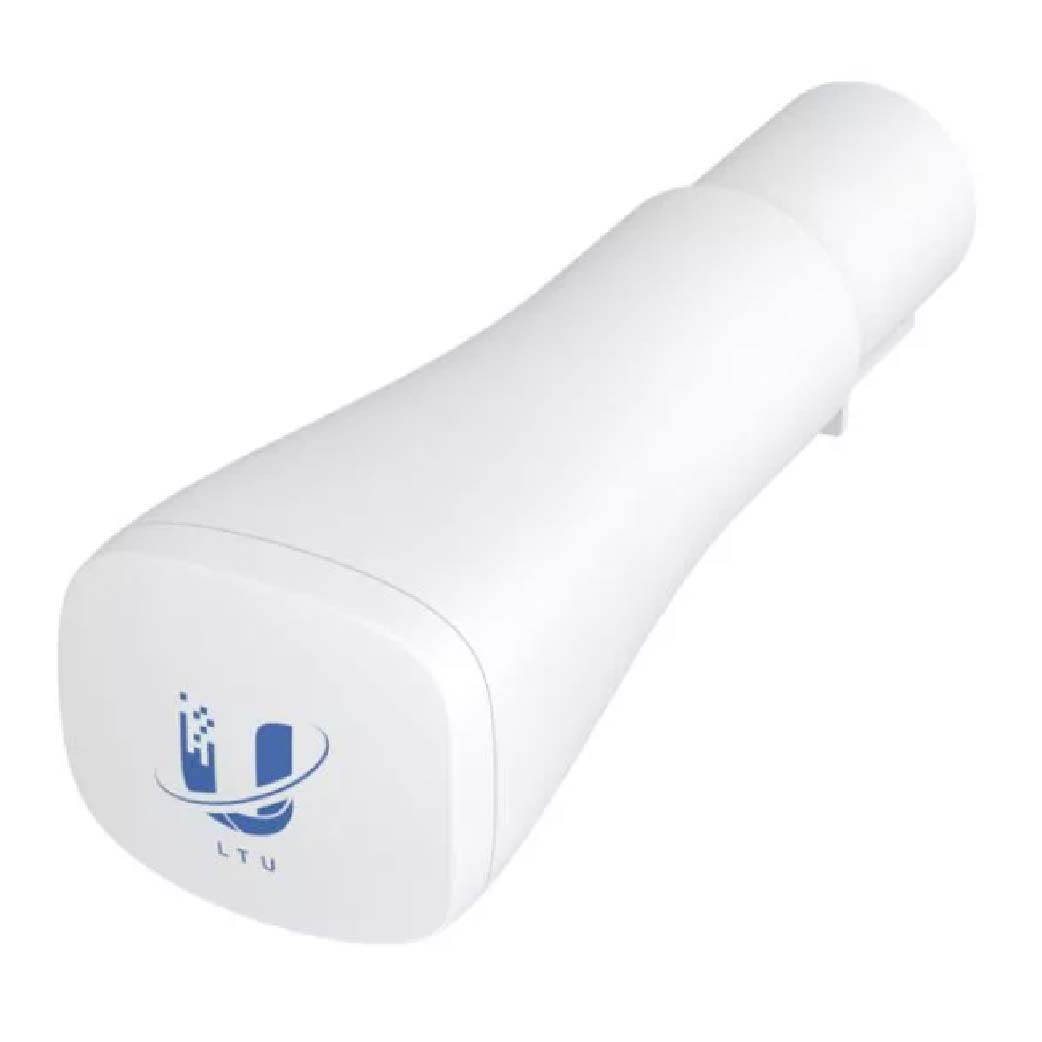

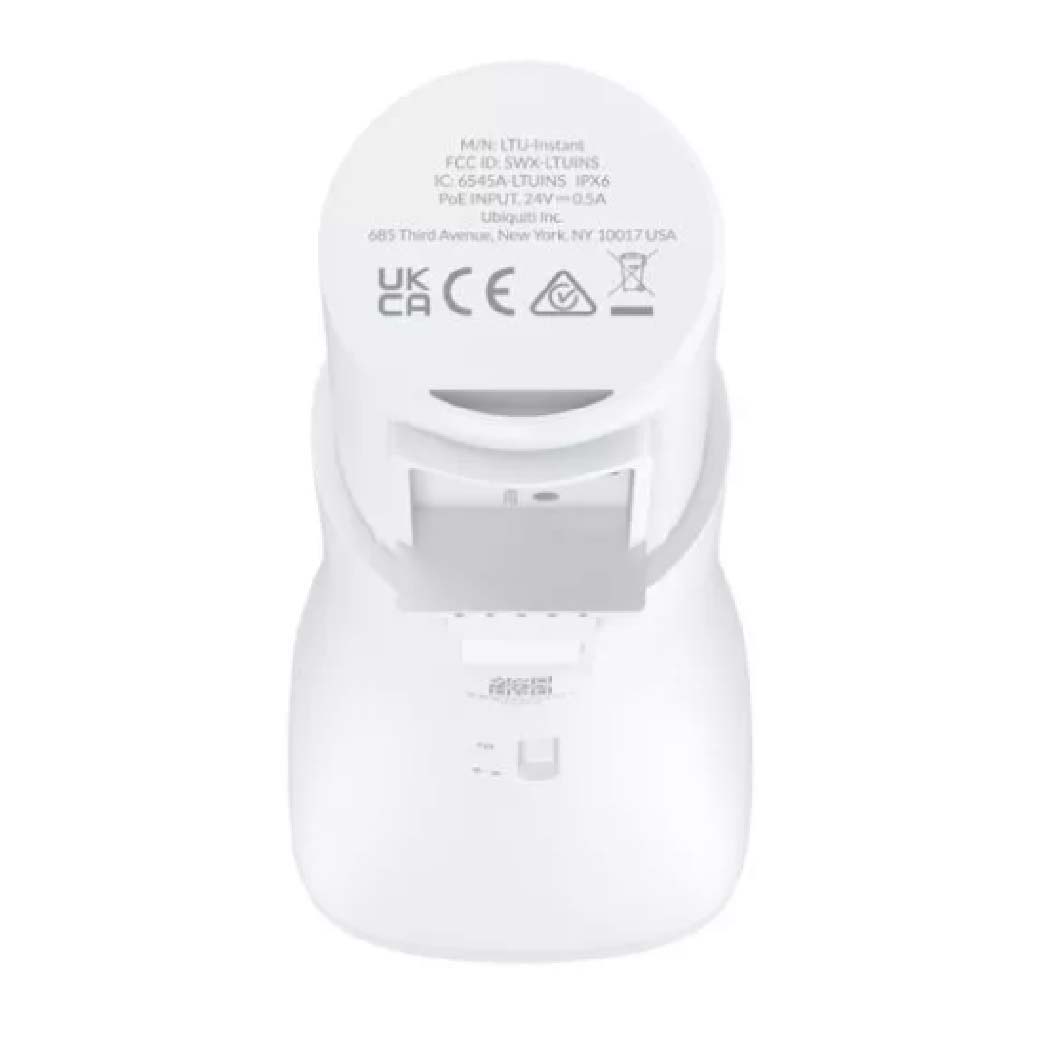

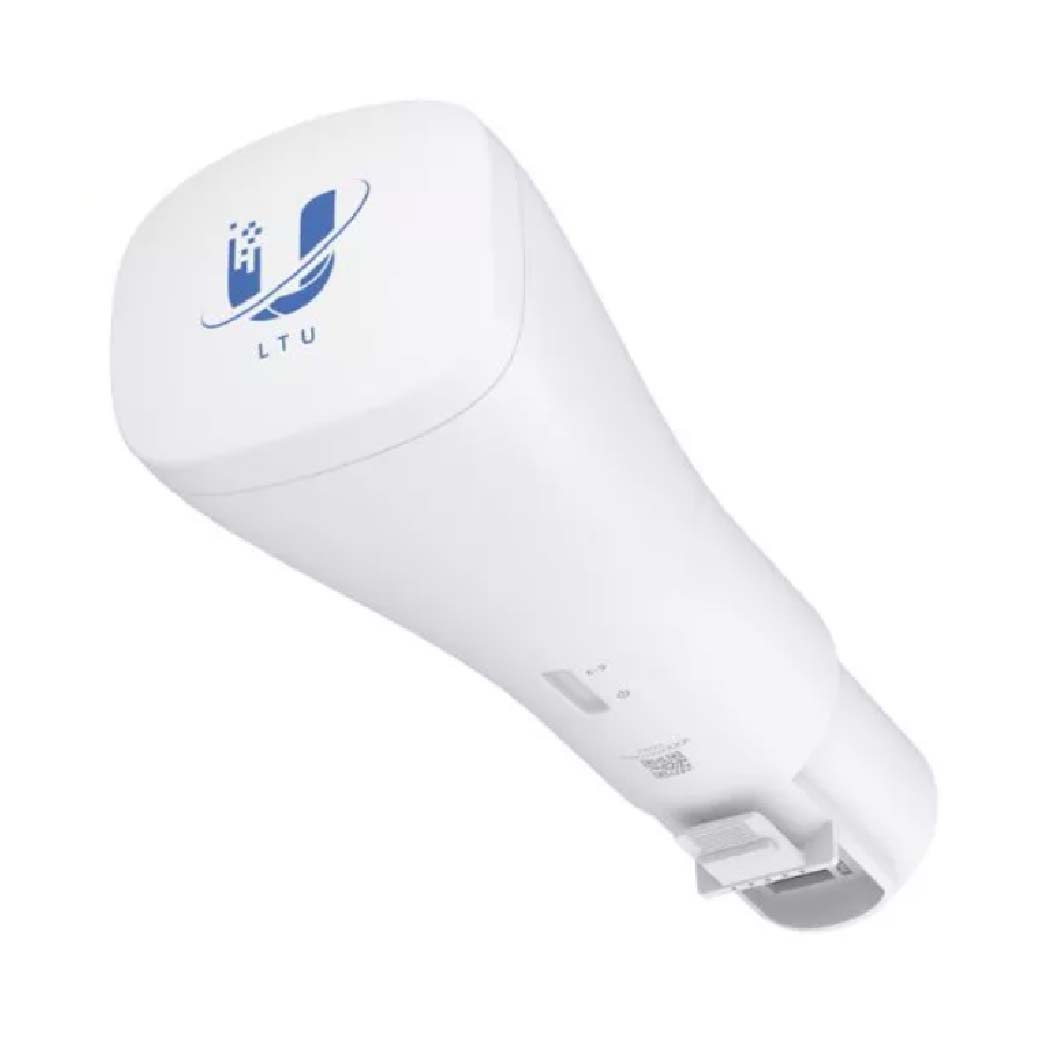

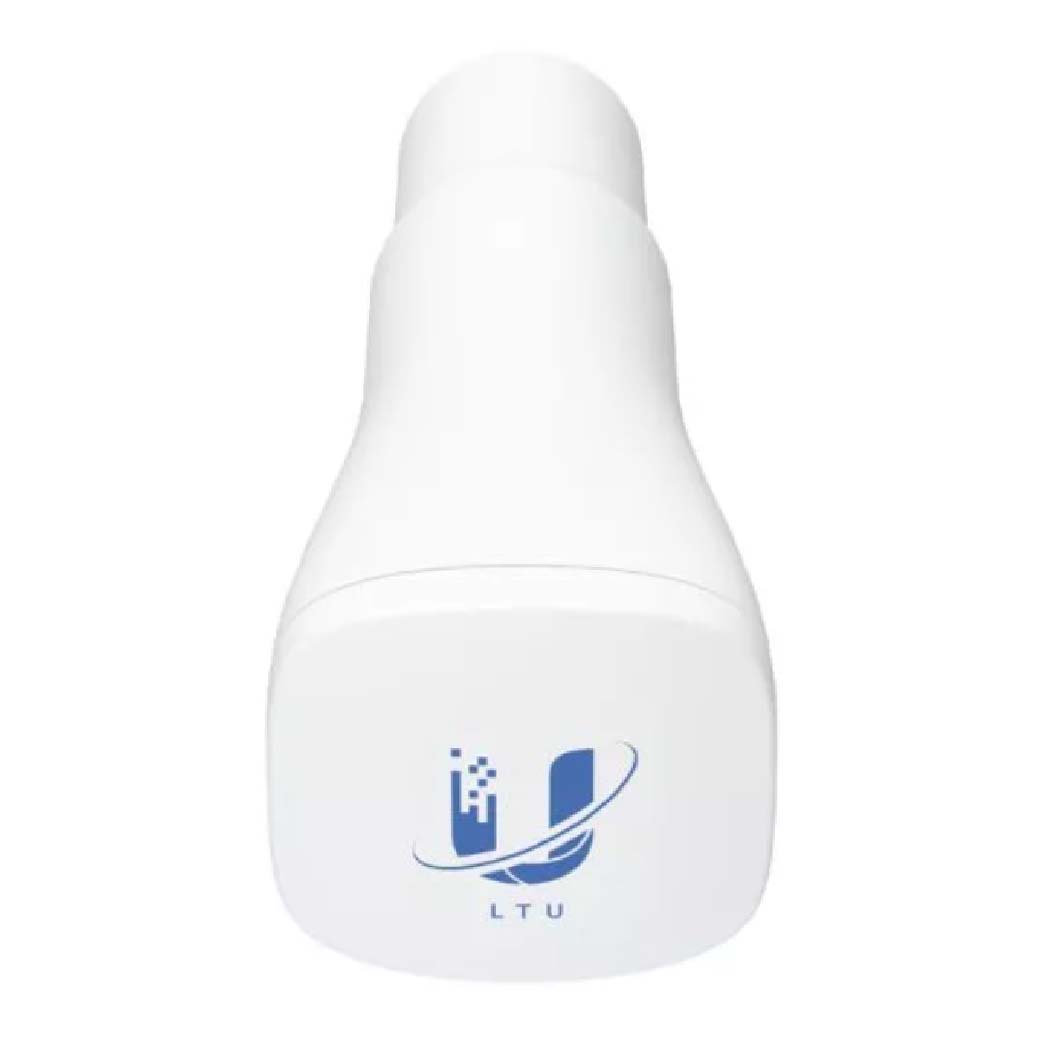

Ubiquiti UISP LTU Instant 5GHz Feed 5-Pack | LTU-INSTANT-5

Description

Ubiquiti’s LTU-INS is a 5.8GHz integrated feed featuring proprietary LTU technology, supplied in a 5-Pack with PoE Injectors included. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900Mbps of real TCP/IP throughput.

The unit functions in either a Point-to-Point (PtP) or Point-to-Multipoint (PtMP) environment with the LTU-ROCKET as its base station. The feed design allows for quick and easy conversion of existing LBE-523ACG2 to a 22dBi LTU CPE.

It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

FEATURES

• Antenna Gain: 22dBi
• Beam-width: 15°
• Data Rate: Up to 900Mbps
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 8.5W
• Mounting: Pole-Mount
• Operating System: airOS
• Operating Temperature: -40°C to 60°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 24V 0.5A Gigabit PoE Injector (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 22 – 26V
• USB Ports: None
• Dimensions: 201.46 x 64.15 x 56.15mm
• Weight: 215g
