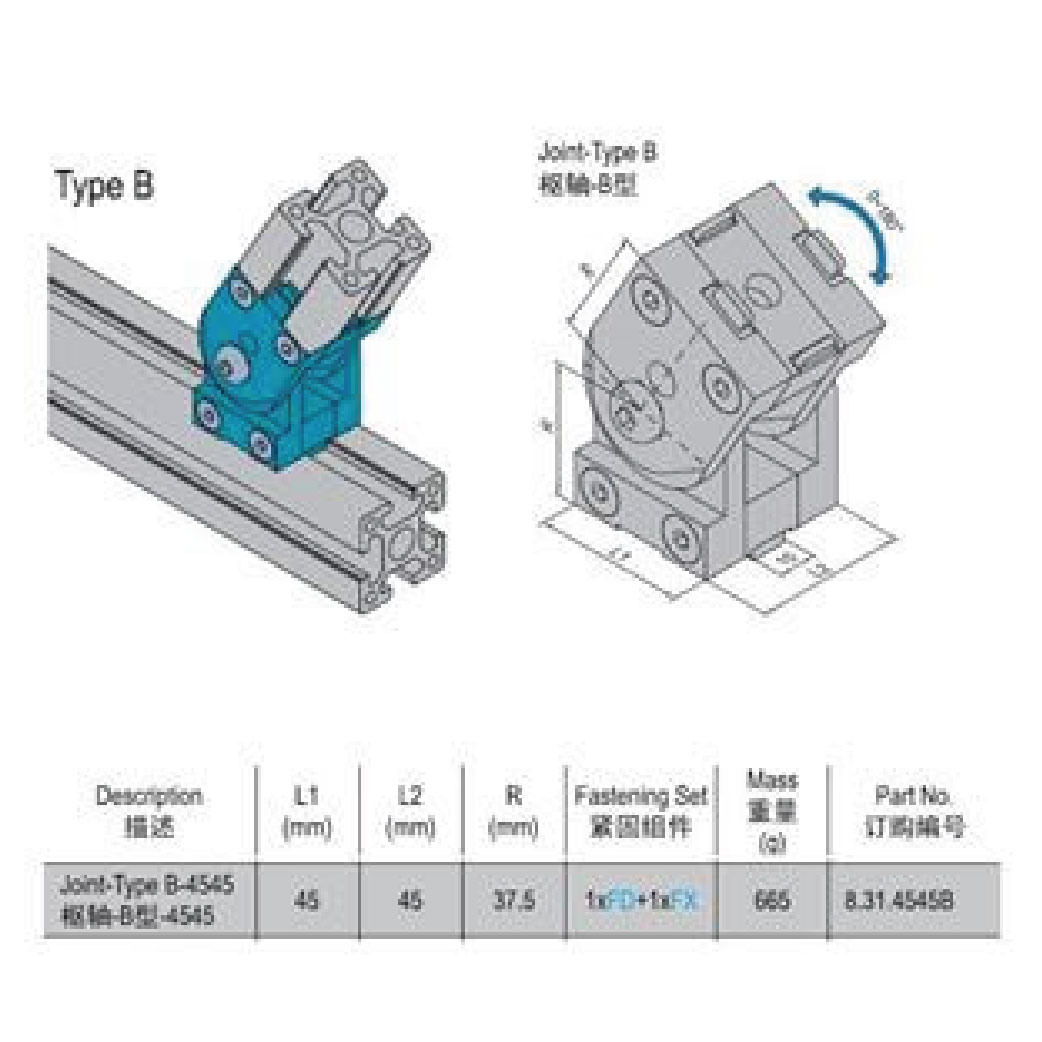

Steel Joint – Type B 45×4

Description

This product is a steel joint, which is a additional accessory. It allows two profiles to be connected, and the connection can be set to be either rigid or movable. First of all, a joint is connected to a profile, and then another profile is connected onto it. Type B joints are attached to profile side and also tilts along profile length. In the case of the connection being movable, the connected profile will be able to be moved back and forth along its axis as desired. Finally, the alternative is having a fixed connection, setting the connected profile to a certain angle and fixing it in that position. Suitable for PG45.

Includes Fastening Set: M8x16 Bolt, M8 T-Nut, M8x20 Bolt, M14-M8 Hole Reducer Bolt. (8.31.4545b)

Material & Color: Zinc Plated Steel

Please EMAIL for stock availability
(E&OE)
