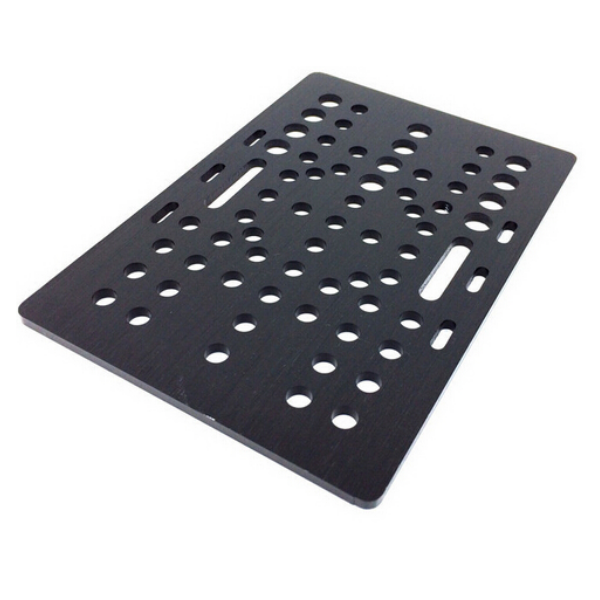

V-Slot Gantry Plate

Description

It’s a large mounting plate designed especially for the C beam profiles. It’s a robust and compact guidance system.

The V-slot gantry plate is designed to run on all 20mm sides of V-Slot linear rail.

This gantry plate is made from 6061-T5 aluminium and is a smaller version of the larger V-slot gantry plate.

This gantry plate is for use with the 20mm side of the extrusions only, this makes it a great alternative to the mini V plate when larger wheels are needed.

Fold through slots have been added to allow the timing belt to be easily folded back onto its self and clamped in place.

Dimensions : 126mm x 88mm x 3mm

EMAIL for Stock Availability
(E&OE)
